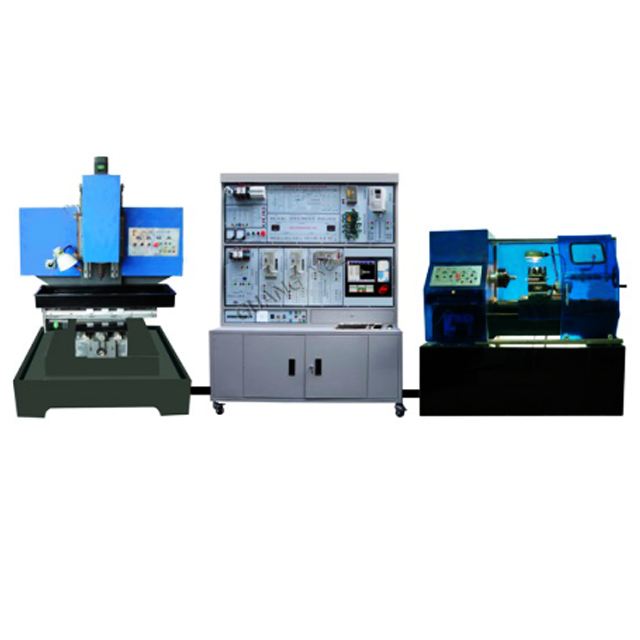

GX-SK21F CNC Machine Tool Comprehensive Assembly and Maintenance Training Equipment

一、Product Overview

The GX-SK21F CNC Machine Tool Comprehensive Assembly and Maintenance Training Equipment is suitable for teaching and training of mandatory course modules such as "CNC Equipment Maintenance", "CNC Processing Technology" or elective course modules, and "Machine Tool Circuit Maintenance" for majors such as mechanical and electrical equipment installation and maintenance, mechanical and electrical technology application, electrical operation and control, electrical technology application, mechanical processing, and non mechanical and electrical majors in higher vocational schools and secondary vocational schools.

The GX-SK21F CNC machine tool comprehensive assembly and maintenance training equipment is also suitable for internships in mechanical and electrical majors such as "Electrical Equipment Maintenance", "CNC Equipment Maintenance", and "CNC Programming and Operation" courses in technical schools. It is also suitable for training and practical operation of installation and maintenance electrician advanced classes, installation and maintenance electrician technician classes, installation and maintenance electrician advanced technician classes, and milling machine workers in vocational training schools.

二、Technical parameters

1)Input power supply: three-phase four wire system 380V AC power supply；

2)Structure: The assessment cabinet is made of iron sheet metal spray plastic structure, sturdy and durable；

3)Working environment: temperature -100-+400C；

4)Overall power consumption: ＜ 3KW；

5)Assessment cabinet size: 180 × 70× 189cm。

三、Practical training projects

1. Design of the electrical system for CNC lathes/milling machines

2. Parameter Setting and Adjustment of CNC System

3. Input Output Interface Training

4. Debugging of machine tool reference points

5. Debugging and application of servo motor drive unit

6. Debugging, parameter setting, and application of frequency converters

7. Electric Tool Holder Control Training

8. Communication of CNC system

9. Fault diagnosis and maintenance of CNC lathes/milling machines

10. Operation and programming of CNC system

11. CNC lathe/milling machine processing training
