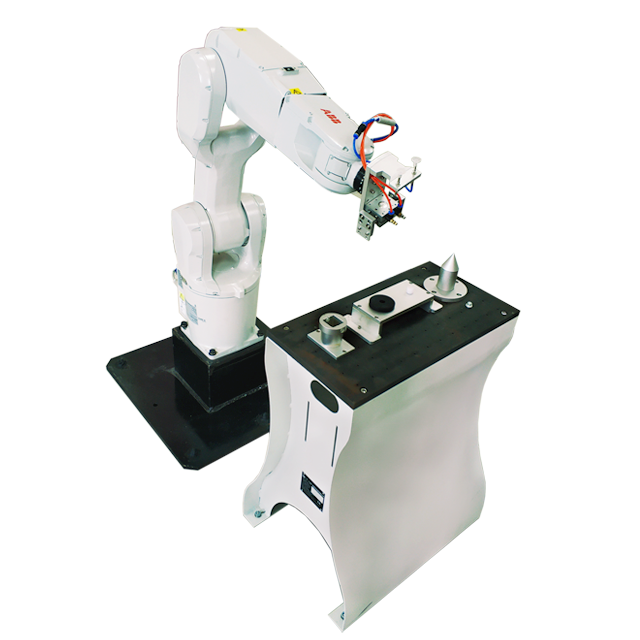

GX-R05 Industrial Robot Basic Skills Workstation

一、 Product Overview

The GX-R05 industrial robot basic skills workstation equipment system conforms to the "four positioning": the positioning of vocational skills competition; The positioning of skill training and appraisal; The positioning of integrated teaching reform; Conforming to the positioning of a high skilled talent training base; This equipment belongs to the basic skills training application equipment, centered around a 6-axis robot, and is equipped with different task carriers according to task requirements to cultivate students' understanding of basic robot knowledge.

二、Technical parameters

1) Working power supply: single-phase three wire 220V ± 5% 50HZ;

2) Safety protection: leakage protection, overcurrent protection, short circuit protection;

3) Rated power: ≤ 2KW;

4) Environmental temperature: -10~50 ℃;

5) Relative temperature: ≤ 85%;

6) Boundary dimension: L2300mm × W2800mm × H1200mm。

三、Practical training projects

1. Basic understanding of industrial robots;

2. Industrial robot teaching device motion operation;

3. Point-to-point teaching of industrial robots;

4. Basic parameter settings for industrial robots;

5. Basic motion instruction learning for industrial robots;

6. Programming of industrial robots based on teaching aids;

7. Industrial robot control applications;

8. Basic wiring methods for industrial robots;

9. Programming and teaching of simple trajectory operation;

10. Programming and teaching of flat circular tracing tasks;

11. Programming and teaching of flat rectangle drawing tasks;

12. Programming and teaching of surface mapping tasks;

13. Fixed position handling programming and teaching;

14. Programming and teaching of glass plate detection and classification arrangement;

15. Programming and teaching of plane position handling assembly;

16. Programming and teaching of inclined plane position handling assembly;

17. Programming and teaching of planar matrix three-dimensional stacking;

18. Programming and teaching of model car window adhesive assembly;

19. The cooperation between industrial robots and gripper fixtures is an application;

20. The combination of industrial robots and suction cup fixtures is an application.
