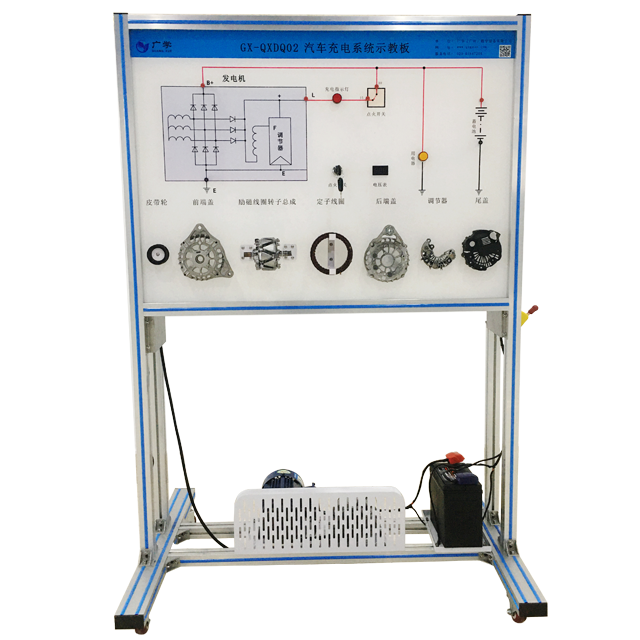

GX-QXDQ02 Automotive Charging System Teaching Board

一、Product Overview

This device is based on an automotive charging system, fully demonstrating the composition, structure, and working process of the charging system. Applicable to the teaching needs of charging system theory and maintenance training in vocational and technical colleges, general education colleges, and training institutions.

二、Technical Parameter

1)Overall dimension: 1200 × 800 × 1800mm (length × wide × High)；

2)Power supply: three-phase four wire (three-phase five wire 380V ± 10% 50Hz)；

3)Working power supply; DC 12V。

三、Major Component

Generator assembly, three-phase drive motor, generator disassembly parts, battery, ignition switch, voltmeter, movable bench, bench power master switch, universal caster with locking, etc.
