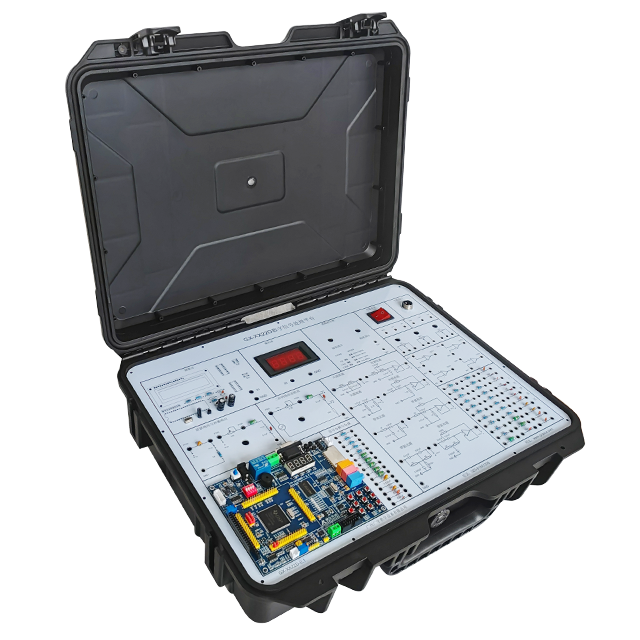

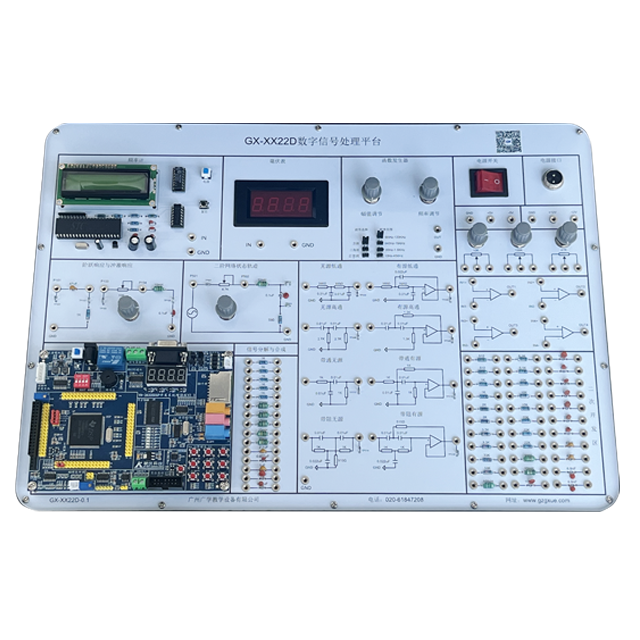

GX-XX22D Digital Signal Processing Platform

1、 Technical parameters

1) Power parameters:+5V, 2A- 5V, 0.5A+ 12V, 0.5A- 12V, 05. A;

2) Frequency meter: measurable signal frequency range: 0-300KHz;

3) Millivoltmeter: measurable signal frequency range: 0-100KHz;

4) Measurable signal amplitude range: 1mV~10V;

5) Amplitude (peak to peak): sine wave 0-12V; Triangular wave 0-18V; Square wave 0-20V;

6) Frequency (adjustable): Sine wave 2Hz~100KHz; Triangular wave 2Hz~100KHz; Square wave 2Hz~100KHz.

2、 Experimental functions

1) Step response and impulse response;

2) Simulation of continuous systems;

3) Analog filter;

4) Sampling theorem;

5) State trajectory of second-order network;

6) Signal convolution;

7) Decomposition and synthesis of rectangular signals;

8) Decomposition and synthesis of sawtooth wave signals;

9) Signal modulation and demodulation;

10) Spectrum analysis of signals;

11) Frequency division and multiplexing;

12) DSP application experiment;

13) DSP digital signal processing unit experiment;

14) Digital filter;

15) Secondary development of host interfaces, etc.
