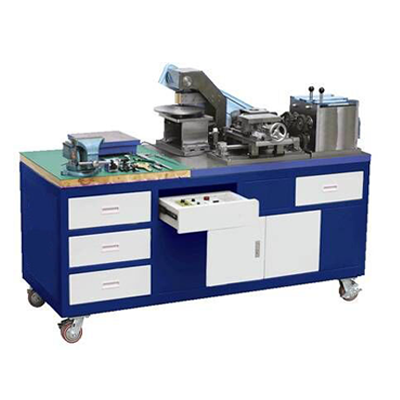

GX-JX23A Mechanical Assembly and Adjustment Technology Comprehensive Training Device

一、Product Overview

This device is developed in accordance with relevant national vocational standards and industry standards, and in combination with the training objectives of secondary vocational schools' majors such as "CNC Technology and Its Applications", "Mechanical Manufacturing Technology", "Mold Manufacturing Technology", "Mechanical and Electrical Equipment Installation and Maintenance", and "Mechanical and Electrical Technology Application". Mainly cultivate students' skills in reading and drawing assembly and component drawings, basic operations of fitters, assembly process and adjustment of components and mechanisms, and assembly quality inspection. Improve students' employability in frontline process assembly and implementation, mechanical and electrical equipment installation, debugging, maintenance and repair, mechanical processing quality analysis and control, and grassroots production management positions in mechanical manufacturing enterprises and related industries.

二、 Technical parameters

1) Input power supply: single-phase three wire AC220V ± 10% 50Hz;

2) 1 AC reduction motor: rated power 90W, reduction ratio 1:25;

3) External dimensions (training platform): 1800mm × 700mm × 820mm;

4) Equipment weight: 600kg

5) Safety protection: With leakage current protection, safety meets national standards.
