GX-JX15B《 Fundamentals of Mechanical Design》 Teaching Display Cabinet

一、Product Overview

The "Fundamentals of Mechanical Design" teaching display cabinet is an electronic teaching equipment designed according to the teaching materials planned by the Ministry of Education for vocational colleges. The demonstration image is realistic, reliable in operation, and the production process is beautiful. The use of this display cabinet can improve the teaching effect. It is a set of modern mechanical course teaching laboratory equipment.

二、Technical parameters

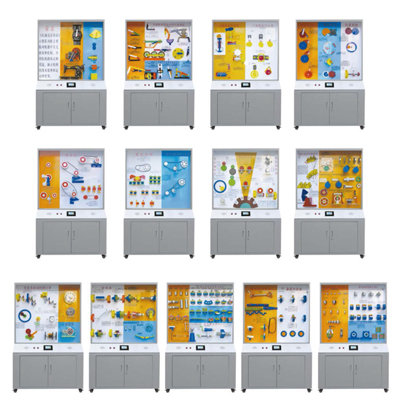

1) This display cabinet is composed of thirteen individual display cabinets, with an overall size of 1200 ×530 × 1900mm long × wide × High);

2) Equipped with a multifunctional voice playback control system. Voice commentary synchronous demonstration, using a separate driver controlled by a computer or electronic device to run the demonstration. The control adopts LCD touch screen control and remote control to automatically run and explain, and can cycle and repeat playback operation. It can also be freely selected or demonstrated separately according to teaching materials and teaching needs. The commentary is broadcasted in a 100 square room with a loud sound;

3) The cabinet body is welded with SPCC cold rolled plates, and the surface is made of medium temperature phosphating spray plastic, resulting in good rigidity of the cabinet body. The display panel inside the cabinet is an ultra luxurious aluminum plastic sandwich panel with good load-bearing capacity. The board surface is accompanied by necessary charts and textual explanations, with a beautiful and elegant appearance and durability;

4) The top of the cabinet is equipped with a lighting fluorescent lamp, and the back of the cabinet is equipped with a facing door, which is beneficial for maintaining equipment and facilitating maintenance. The lower part of the cabinet is equipped with a cabinet for convenient storage of individual models, experimental boxes, and related experimental documents. The bottom of the cabinet is equipped with a universal wheel, which is easy to move and meets the requirements of ergonomics;

5) The model material is made of acrylic organic board and engineering plastic.
