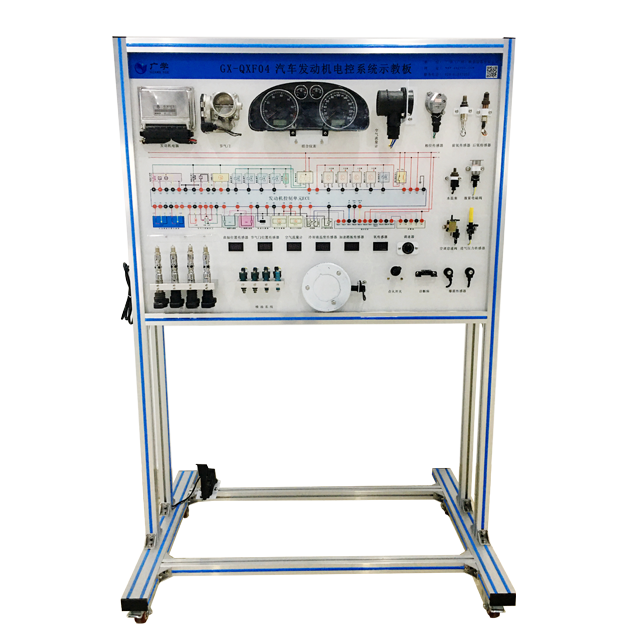

GX-QXF04 Automotive Engine Electronic Control System Teaching Board

一、Product Overview

This equipment is based on a gasoline engine electronic control system, fully demonstrating the composition structure and working process of the engine electronic control system. Applicable to the teaching needs of charging system theory and maintenance training in vocational and technical colleges, general education colleges, and training institutions.

二、Technical Parameter

1)Overall dimension: 1200 ×800 × 1800mm (length × wide × High)；

2)Working power supply: DC 12V。

三、Major Component

Engine control unit, ignition system, fuel injection system, sensor actuators, movable stand, switch power supply, universal casters with locking, etc.
