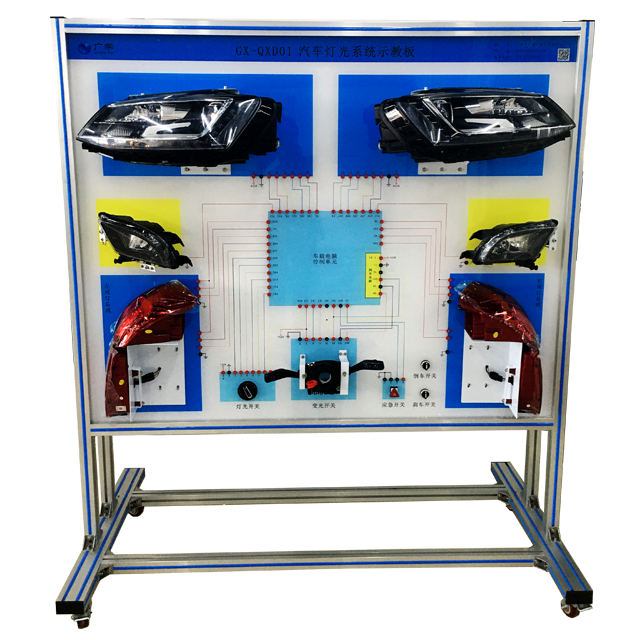

GX-QXD01 Automotive Lighting System Teaching Board

一、Product Overview

This equipment is based on an automotive lighting system, with LED full lighting, fully showcasing the structure and working process of the automotive lighting system. Applicable to the teaching needs of lighting system theory and maintenance training in vocational and technical colleges, general education colleges, and training institutions.

二、Technical Parameter

1)Overall size: 1200 × 800 × 1800mm (length × wide × High)；

2)Input power supply: AC 220V ± 10% 50Hz；

3)Working power supply: DC 12V。

三、Major Component

Left headlight assembly (with LED daytime running light), right headlight assembly (with LED daytime running light), left front fog lamp assembly, right front fog lamp assembly, left tail lamp assembly, right tail lamp assembly, light switch, dimmer switch, hazard lamp switch, flash relay, movable stand, locking universal caster, etc.
