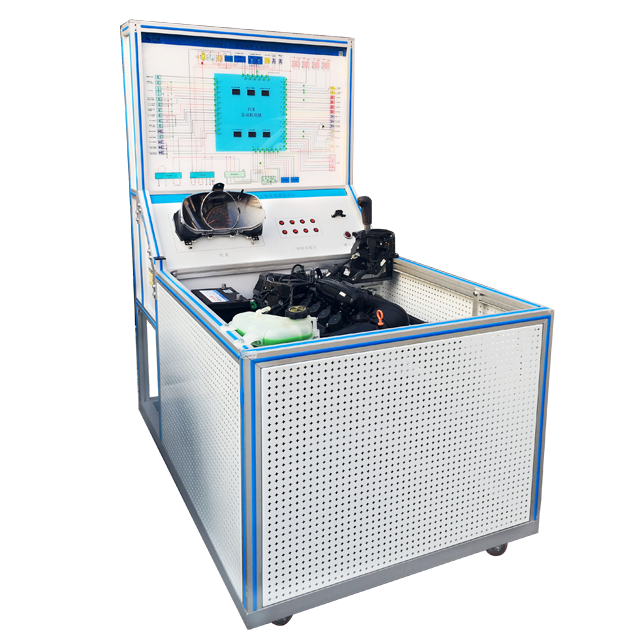

GX-QFF 1.5L engine with continuously variable transmission training platform (2021 Honda Fit)

一、Product Overview

It is composed of a new 2021 Honda Fit 1.5L four cylinder gasoline L15BU engine with CVT continuously variable transmission assembly and movable bench. Through the demonstration of the training platform, it is possible to have a clear understanding of the structure and functions of the engine and transmission, facilitating students to quickly grasp the structure and principles of the engine and transmission, improving their initial understanding of the engine and transmission, and enabling students to have a more direct and in-depth understanding of the engine and transmission. It is the most ideal teaching equipment for various automotive schools to train in the theory and maintenance of the engine and transmission system.

二、Technical Parameter

1)Bench size: 1500 * 1000 * 1800mm (length * width * height)；

2)Working power supply: 12VDC；

3)Fuel grade: 92#。

三、Major Component

1.5L four cylinder L15BU gasoline engine assembly, CVT continuously variable transmission assembly, engine electronic control unit, one button ignition switch, fault setting system, oil pressure gauge, vacuum gauge, fuel tank, battery, diagnostic base, cooling system (water tank, fan, fan cover, upper and lower water pipes), exhaust system, signal detection area corresponding to the pins of engine computer, LED lights, signal table, safety shield, movable bench, etc.
