GX-SK21C CNC Machine Tool Four in One Maintenance Training Equipment

一、Product Overview

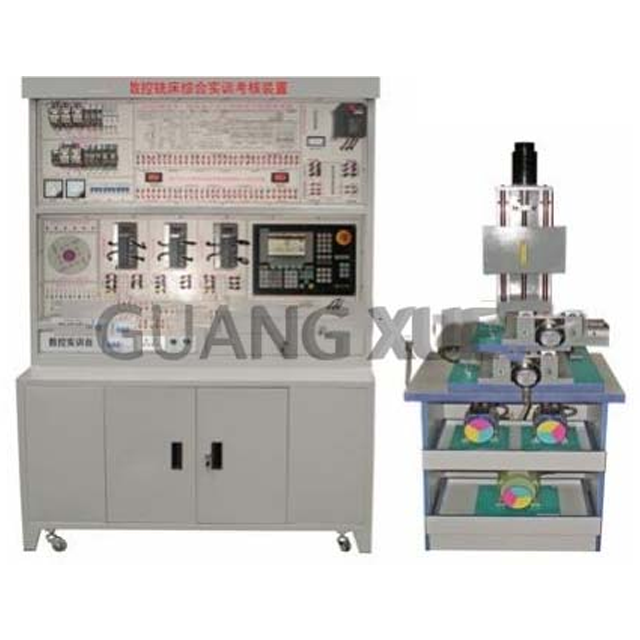

The GX-SK21C CNC machine tool four in one maintenance training equipment is composed of CNC control console and three coordinate demonstration platform, and other components to form the training and assessment teaching equipment. The system adopts the Siemens 802C CNC system. The X, Y, and Z axes of the CNC machine tool are controlled by servo motors, and the spindle motor is controlled by a frequency converter. It is equipped with a photoelectric encoder, a cooling pump motor, and a ball screw drive for the X, Y, and Z axis drag plates of the three coordinate demonstration platform. The experimental platform is also equipped with a simulated six position tool holder module. Students can learn about the control of the 802C servo motor, frequency converter control, and four position electric tool holders The principle of Hall elements and proximity switches, as well as PLC instructions, programming, wiring, and their application in CNC machine tools, CNC lathe programming, milling machine tool programming, C-axis programming of turning machining centers, maintenance, etc.
