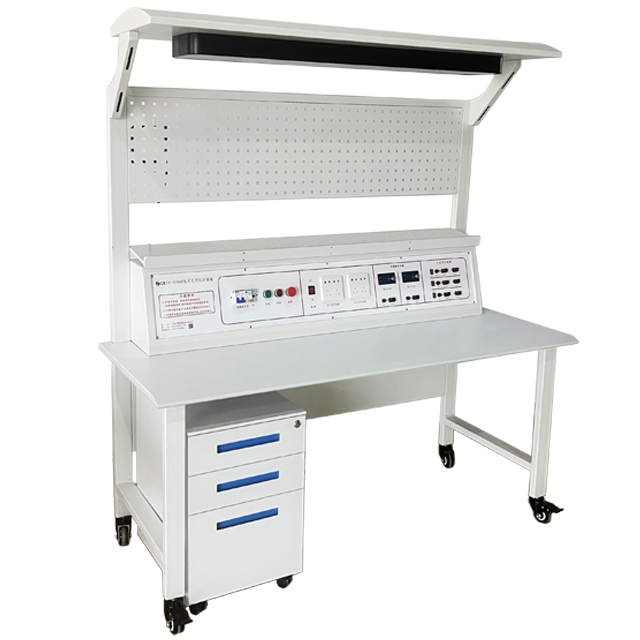

GX-DZ06C Electronic Technology Training Equipment

一、Product Overview

The GX-DZ06C equipment is suitable for the experimental and practical training requirements of vocational colleges and senior technicians. Applicable majors include courses such as,,,,,,for electrical, electronic, mechanical, electromechanical, and general engineering majors, as well as mathematical and experimental training for analog and digital circuit modules in "Electrical and Electronic Technology" for non electrical majors, which can also meet electronic training needs; Practical training projects include electronic component identification and testing, circuit board welding, electronic product assembly, electronic product debugging, and PCB board diagram design.

二、Technical Parameter

1)Working power supply: single-phase three wire 220V ± 5% 50HZ；

2)Safety protection: leakage protection, overcurrent protection；

3)Rated power: ≤ 1KW；

4)Environmental temperature: -10~50 ℃；

5)Relative temperature: ≤ 85%；

6)Boundary dimension: L1648mm × W748mm × H1550mm。

三、Practical training projects

1.Use of commonly used instruments and meters

2.Identification and detection of commonly used electronic components

3.Disassembly and assembly of electric soldering iron and training of electronic soldering skills

4.Production of printed circuit boards

5.The production of a three terminal integrated regulated DC power supply

6.The production of series type DC regulated power supply

7.Assembly and Testing of Low Frequency Signal Voltage Amplifiers

8.The fabrication and testing of amplifier circuits with negative feedback signals

9.Welding and Debugging of Wenshi Bridge Oscillator

10.Production and Testing of Battery Voltage Monitoring Circuit

11.The Manufacturing of Electronic Hypnosis Circuit

12.Practical training on the production of simulated "cicada" electronic circuits

13.Production and practical training of practical voice and light controlled energy-saving lighting lamps

14.Production and Training of Voice Alarm Horn

15.The production and testing of a logic tester

16.Production and testing of positive and negative pulse signals

17.The production of a quiz answering machine

18.The production of water level alarm circuit

19.The production of mini flash colored lights

20.Light controlled music doorbell

21.The Production of a Practical Simulated Natural Wind Controller

22.Table lamp dimming circuit

23.Practical CMOS touch lock key circuit
