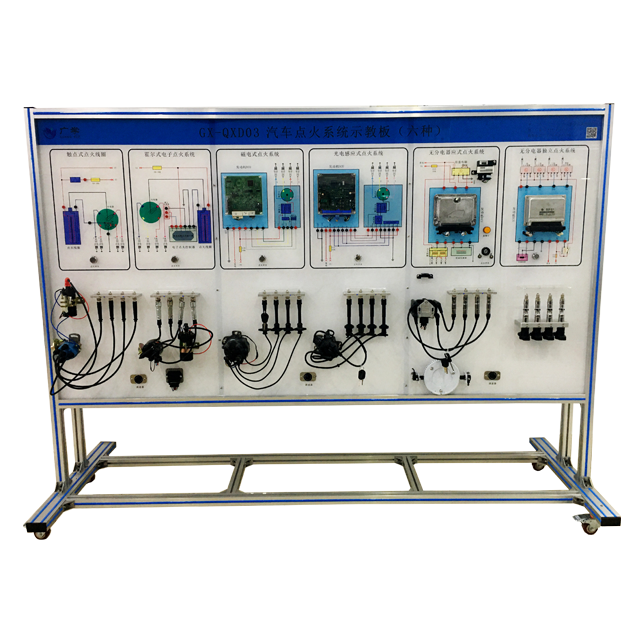

GX-QXD03 Automotive Ignition System Teaching Board (Six Types)

一、Product Overview

This equipment is based on the automotive engine ignition system, fully demonstrating the composition, structure, and working process of the automotive engine ignition system. Suitable for teaching the theoretical and maintenance training needs of engine ignition systems in vocational and technical colleges, general education colleges, and training institutions.

二、Technical Parameter

1)Boundary dimension: 2400 × 800× 1800mm (length × wide × High)；

2)Input power supply; AC 220V ± 10% 50Hz；

3)Working power supply; DC 12V。

三、Major Component

Contact ignition system, Hall ignition system, magneto electric ignition system, photoelectric ignition system, non distributor ignition system, independent ignition system, switch power supply, ignition switch, variable speed motor, diagnostic seat, movable bench, universal caster with locking, etc.
