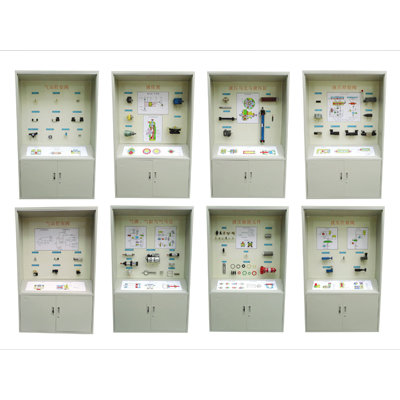

GX-JX19B Pneumatic Hydraulic Teaching Display Cabinet

一、 Product Overview

  The pneumatic hydraulic teaching display cabinet is a modern teaching equipment designed based on relevant textbooks to meet the teaching needs of universities and colleges. It mainly displays the basic types and structures of related components such as cylinders, control valves, hydraulic pumps, motors, control valves, etc. in physical objects or models, as well as necessary graphic and textual materials.

二、Technical parameters

1) Each model in the display cabinet is equipped with a text label;

2) Design graphic thinking questions in the display cabinet for heuristic or exploratory teaching;

3) The models in the display cabinet are mainly refined from physical objects and PVC;

4) The cabinet body is welded with SPCC cold rolled plate, which is sturdy and beautiful. The surface is coated with medium temperature phosphating anti rust paint and flat paint, and electrostatic spraying. The board surface is accompanied by necessary charts and text instructions, demonstrating a vivid and reliable operation;

5) Input voltage: AC220V, power 400W;

6) Single display cabinet overall size: 1100 ×450× 1900mm long × wide × High).
