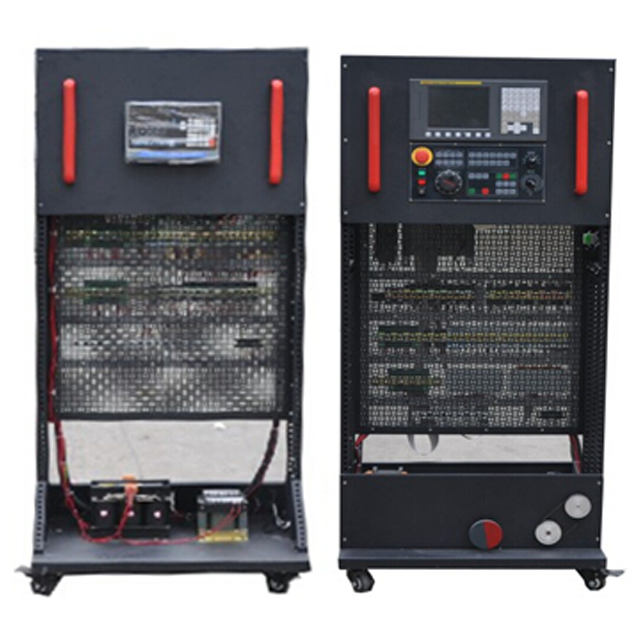

GX-SK21D CNC Lathe Assembly and Maintenance Training Equipment

一、Product Overview

This system is a practical training equipment specifically developed for vocational schools and vocational education and training institutions for the installation, adjustment, and maintenance assessment of CNC lathes. Based on the characteristics of CNC lathe maintenance technology in the mechanical and electrical industry, and combined with the skill appraisal requirements of CNC lathe installation, adjustment, and maintenance workers, research is conducted on the electrical control and mechanical transmission of CNC lathes. Specialized design is made for practical teaching activities, including CNC system application, PLC control, frequency conversion and speed regulation control Sensor detection, servo drive control, high and low voltage electrical control, mechanical transmission and other technologies have strengthened students' comprehensive hands-on abilities in installation, wiring, debugging, fault diagnosis and maintenance of CNC lathes. Suitable for teaching and training in mechanical and electrical related majors, as well as assessment and appraisal of CNC lathe installation and maintenance workers, lathe workers, and other types of work。

The unique integrated structural design makes the functions of each unit clearer, facilitating a complete understanding of the composition of the CNC system, and the cabinet structure is more convenient for programming and parameter debugging。

Fully open structure electrical installation board, more convenient and intuitive understanding of electrical installation and layout design。

Modular combination design, more convenient for teaching and training of various types of projects。

二、Technical Parameter

1)Input power supply: three-phase five wire 380V AC power supply；

2)Leakage protection: Leakage action current ≤ 30mA; Equipped with grounding protection；

3)Working environment: temperature -100~400C；

4)Overall power consumption: ≤ 5KW；

5)External dimensions of electrical control unit: 1000 × 600× 1800mm；

6)External dimensions of electrical installation unit: 1000 ×600× 1800mm；

7)CNC system: FANUC；

8)The standard configuration for fault assessment is: GX-SK21D CNC machine tool intelligent assessment system。

三、Practical training projects

Circuit design, equipment installation, and circuit connection

1. Installation and wiring of CNC system

2. Design and wiring of system start stop control circuit

3. Circuit design of variable frequency speed control system, installation and wiring of frequency converter and spindle motor

4. Circuit design of AC servo drive system, installation and wiring of driver and servo motor

5. Circuit design, component installation, and wiring of the cooling control system

6. Design and wiring of emergency stop and limit control circuits

7. Wiring of manual pulse generator

Mechanical component assembly and adjustment

1. Assembly and adjustment of ball screw nut pair

2. Assembly and adjustment of linear guide rail pair

3. Assembly of the drag plate on the X-axis

4. Assembly of the drag plate on the Y-axis

5. Assembly of motor and coupling

6. Assembly of lubrication system

Function debugging of CNC machine tools

1. Basic operation of CNC system

2. Setting and debugging of basic parameters of CNC system

3. Parameter Setting and Debugging of CNC System Feed Axis

4. CNC system spindle parameter setting and debugging

5. Driver parameter setting and debugging

6. Frequency converter parameter setting and debugging

Electromechanical joint debugging and troubleshooting

1. CNC lathe electromechanical joint debugging

2. Fault diagnosis and troubleshooting of CNC lathe

Geometric accuracy testing of CNC lathes

Programming and machining of CNC lathes

1. CNC lathe programming

2. CNC lathe processing

Maintenance and upkeep of CNC machine tools
