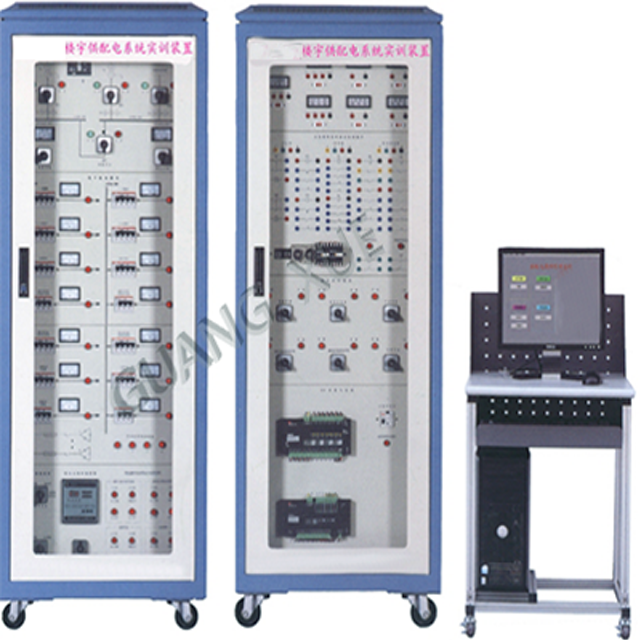

GX-LY20I Building Power Supply and Distribution System Training and Assessment Equipment

一、Product Overview

This training device can be used in conjunction with courses related to intelligent building power supply and distribution systems to conduct practical teaching on the low-voltage part of power supply and distribution. It can help students understand the basic structure of power supply and distribution in buildings, become familiar with power supply and distribution monitoring systems, and master the application of power supply and distribution electronic systems in building automation systems.

This device can meet the practical teaching requirements of subjects such as "Intelligent Building", "Building Electrical", and "Building Automation". Suitable for teaching in various vocational education and training institutions.

二、Technical Parameter

1)Input power supply: three-phase four wire~380V ± 10% 50Hz；

2)Environmental temperature: -10 ℃~+45 ℃；

3)Device capacity: ＜ 5kVA；

4)Safety protection: Equipped with leakage protection。

三、Practical training projects

Instrument Equipment Training Project

1. Cognition and application of commonly used distribution equipment

2. Cognition and Application of Electricity Sensors

Line installation, commissioning, and operation

1. Establishment and operation of power supply operation lines for intelligent buildings

2. Composition and operation of typical floor distribution operation lines

3. On site monitoring, meter reading, and control of the operating line status in the power supply and distribution system

Cognition and operation control of power supply and distribution automation equipment

1. Control and debugging of backup automatic switching linkage operation

2. Emergency power distribution line operation and linkage control

3. Power factor compensation operation control of distribution lines

Integrated control operation of power supply and distribution system

1. Operation scheduling of power supply and distribution monitoring system

2. Linkage control with the automatic fire alarm system
