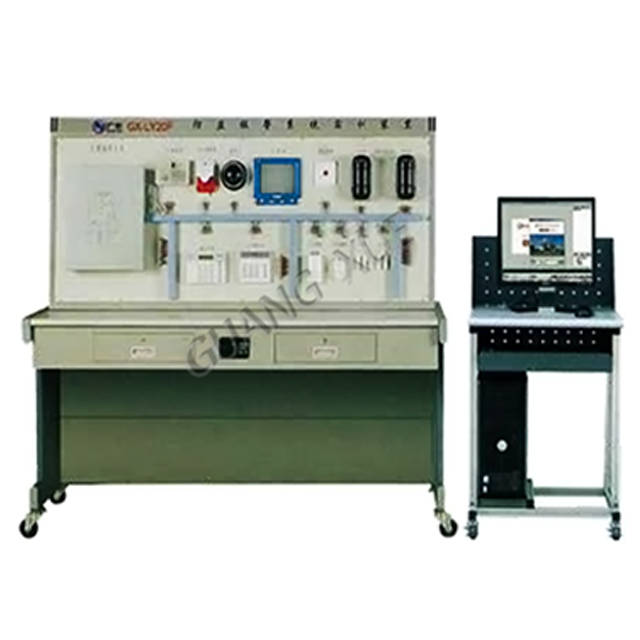

GX-LY20F Anti Theft Alarm System Training and Assessment Equipment

一、Product Overview

This equipment is designed according to the requirements of fire and safety protection systems in tutorials such as "Building Equipment Automatic Control", "Building Electrical Control", and "Building Automation Technology and Applications". Equipped with alarm host system, infrared radiation detector, curtain detector, sound and light alarm, monitor, door magnet, window magnet, and other devices, the equipment adopts an open design and can conduct teaching and training on circuit design, circuit connection, system parameter setting, system programming, linkage operation demonstration, and fault demonstration and troubleshooting of various anti-theft alarm systems.

二、Technical Parameter

1)Working power supply: three-phase five wire 220V ± 5% 50Hz;

2)Safety protection: leakage protection (operating current ≤ 30mA) overcurrent protection, fuse protection;

3)Boundary dimension: 1500 × seven hundred and fifty × 1560mm；

4)Rated power:<0.5KW;

5)Environmental temperature: -10 ℃~40 ℃;

6)Relative humidity:<85%;

7)Equipment weight: 125Kg.

三、Practical training projects

1.Practical training on system equipment wiring;

2.Wired alarm debugging training;

3.Wireless alarm debugging training;

4.Practical training on anti-theft alarm software operation;

5.Training on alarm and linkage;

6.Practical training on system defense and defense removal handling;

7.System fault detection and processing experiment.
